| Packaging | R | ||
| Notes | Meets Flame Resistance Acceptance Designation "MSHA 2G" and ISO 11237 R17. | ||
| Tube | Black, oil-resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics. | ||
| Utilización | Wire Braid | ||
| Hose Outside Diameter (in) | 0,63 | ||
| Min. Burst Pressure (psi) | 13.000 | ||
| Continuous Operating Temperature Range | -40°F to +212°F | ||
| Product # | 46575744 |
| Weight (lbs.) | 0,20 | ||
| Standard Industry Specification | EN 857 1SC, ISO 11237 R17, ISO 18752, SAE 100R17 | ||

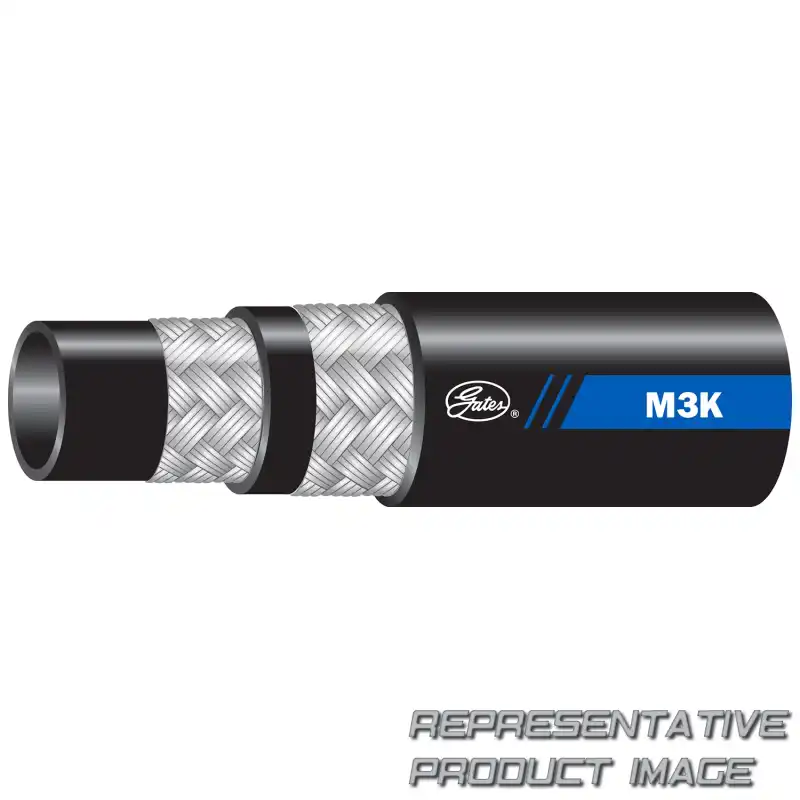

| Reinforcement | Braided, high-tensile steel wire. -4, -5, -6 and -8 sizes are one braid; -10, -12 and -16 sizes are two braid. | ||
| Temperature Range | -40°F to +212°F (-40°C to +100°C). For water emulsions see Temperature Limits Table. | ||
| Hose Inside Diameter (in) | 0,38 | ||
| Minimum Bend Radius (in) | 2 | ||
| UPC | 072053631326 | ||
| Part # | 6M3KXBALE / 6M3KXBALE |
