| connection 2 size | 4 mm (i.d) | ||
| connection 1 size | 4 mm (o.d) | ||

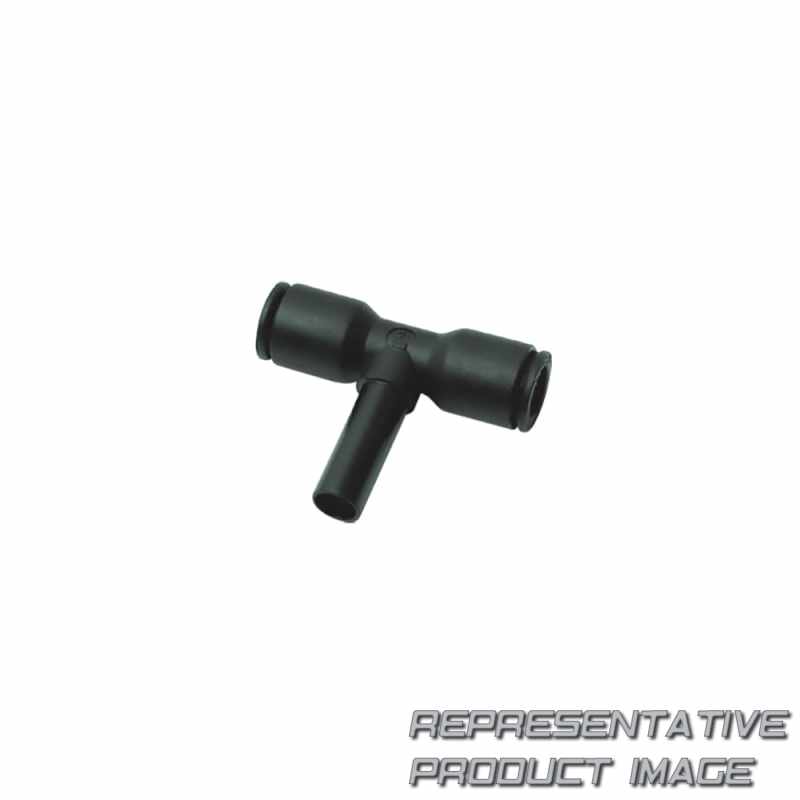

| shape | branch tee | ||
| o-ring material | nbr | ||
| maximum operating pressure | 20 barg | ||
| Temperatura máxima de servicio | 80 °c | ||
| quantity per box | 10 | ||
| Aplicación | robotics, automotive process, pneumatics, semi-conductors, textile, packaging, vacuum | ||
| specifications met | iso 14743, di: 97/23/ec (ped), di : 2002/95/ec (rohs), 2011/65/ec, di : 1907/2006 (reach) |
| product style | plug-in fitting | ||
| configuration | tube to tube stem | ||
| body material | technical polymer | ||
| gripping ring material | stainless steel | ||
| Temperatura de servicio mínima | -20 °c | ||
| vacuum pressure rating | 755 mm-hg | ||
| Peso | 0,002 kg | ||
| media | compressed air, other fluids: please consult us |
