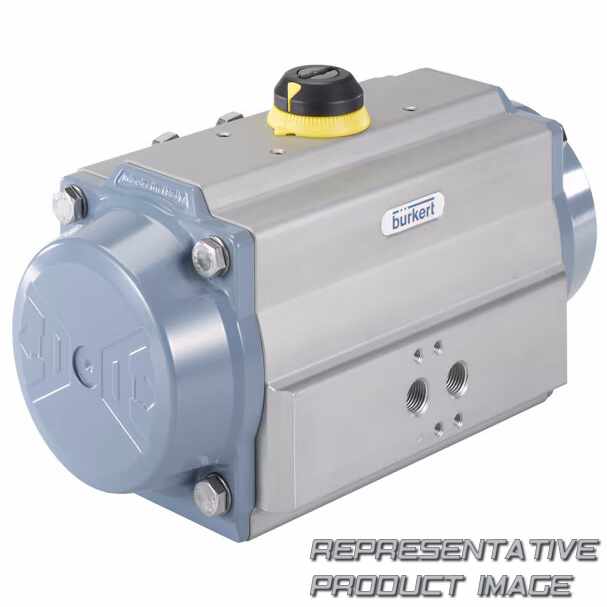

| product sub-group | actuators | ||
| emergency resetting | fail to close | ||
| control air connection diameter (inch) | 1/8 inch | ||
| control air connection type | internal thread | ||
| interface actuator/fitting flange | f05/f07 | ||
| amount of spring packages per side | 6 pieces | ||
| actuator material | aluminium | ||
| Limitador de carrera | standard | ||
| piston seal material category | elastomer | ||
| temperature environment min | -40 °c | ||
| control pressure min | 2,5 bar | ||
| valve function number of switching positions | 2 |
| Tipo | 2.051 | ||
| angle of rotation | 90 deg | ||
| control air connection thread type | g | ||
| interface actuator/fitting shaft | 14 mm | ||
| mounting flange according to iso 5211 | yes | ||
| actuator size | size 30 | ||
| actuator material category | light metals | ||
| piston seal material | m-nbr | ||
| temperature environment max | 80 °c | ||
| control pressure max | 8 bar | ||
| Función de control | a - normally closed (nc) | ||
| Customscode | 84819000 |
