0
Bürkert

20057908 Bürkert

20057908-1
20057908-2

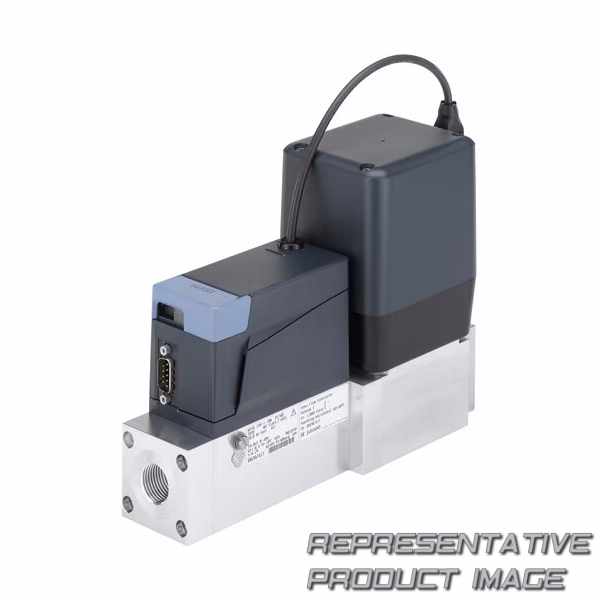

BURKERT 20057908

$5.067,54
disponible con envío de 3 a 7 días a Mexico

Especificaciones

Posición de montaje vertical, flow upwards
Tensión de alimentación 24 v dc
Peso 998g
protection type ip (max. with suitable connector) ip20
Señal de salida 4-20 ma
electrical connection 1 type d-sub
Tipo 8.745
output type digital quantity 1
sealing toward outside material fkm (fluor rubber)
outlet pressure medium 1 at qnom 1,5
fluidics body material aluminium
typical electrical power consumption 3 w
port connection 2 standard g
port connection 2 dn 1"
port connection 1 type internal thread
measuring or control range 1:50
calibration pressure medium 1 at qnom 2
operating medium 1 air
work area medium 1 2
Customscode 90328900
actuator type 3.285
input signal 4-20 ma
device function controller
seat size 20 mm (3/4")
input type digital quantity 1 pce
seat seal material fkm (fluor rubber)
maximum pressure medium 3
electronics body material pc (polycarbonate)
power consumption according to ul61010-1 12,5 w
port connection 2 type internal thread
port connection 1 standard g
port connection 1 dn 1"
units for pressure specifications bar (ü)
calibration medium 1 air
unit medium 1 slpm
Posición de montaje vertical, flow upwards
