| Material de la carcasa | polyphenylene sulfide | ||
| max. ambient temperature | 50 °c | ||
| Tiempo de conexión | 100 % | ||
| Principio de sellado | soft seal | ||
| voltage tolerance dc | -10% / +10% | ||
| working pressure max | 8 bar | ||
| nominal flow qn | 7.5 l/min | ||
| Función de la válvula | nc | ||
| frame size | do10 |
| Peso | 0.038 kg | ||
| min. ambient temperature | -10 °c | ||
| power consumption dc | 1.2 w | ||
| protection class with connection | ip50 | ||
| operational↩voltage | 24 v dc | ||
| working pressure min. | 0 bar | ||
| Accionamiento manual auxiliar | without detent | ||

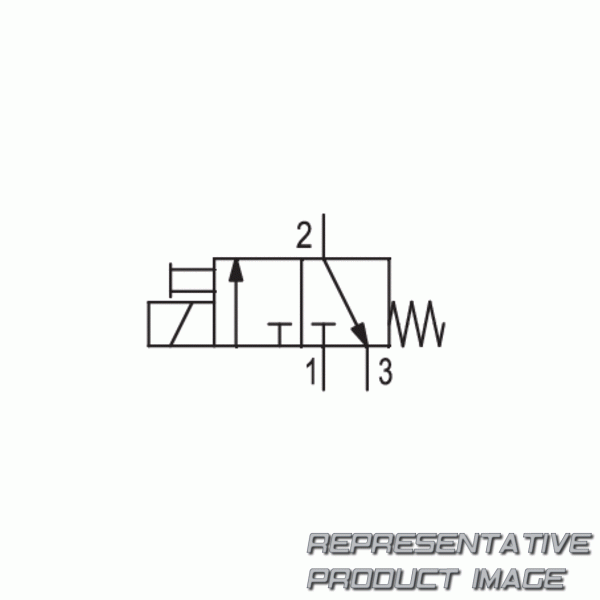

| switching principle | 3/2, with spring return | ||
| activation | electrically |
