| Estándares | nfe 49004 | ||
| Carrera | 50 mm | ||
| Amortiguación | elastic cushioning | ||
| environmental requirements | industry standard, atex optional | ||
| piston rod | single | ||
| pressure for determining piston forces | 6,3 bar | ||
| extracting piston force | 4948 n | ||
| max. ambient temperature | 80 °c | ||
| working pressure max | 10 bar | ||
| Rosca del vástago | m20x1,5 | ||
| stroke max. | 500 mm | ||
| min. medium temperature | -20 °c | ||
| max. particle size | 50 µm |
| piston Ø | 100 mm | ||

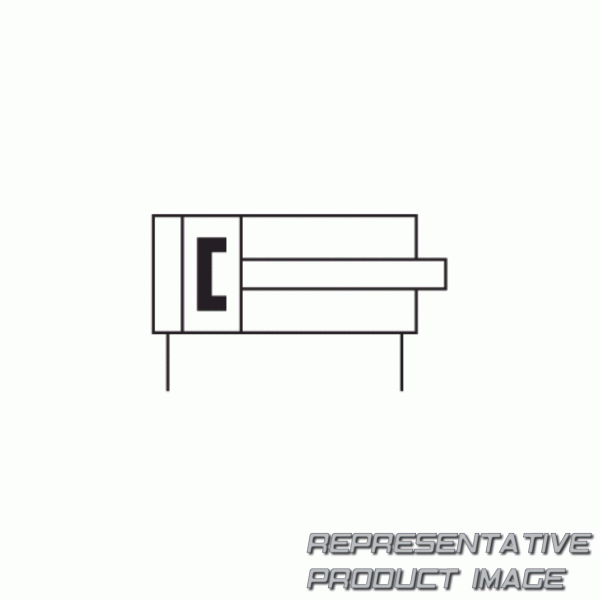

| Principio de funcionamiento | double-acting | ||
| magnetic piston | piston with magnet | ||
| certificates | atex optional | ||
| scraper | standard industrial scraper | ||
| retracting piston force | 4639 n | ||
| min. ambient temperature | -20 °c | ||
| working pressure min. | 0.6 bar | ||
| Conexiones | g 1/8 | ||
| impact energy | 2.5 j | ||
| Medio | compressed air | ||
| max. medium temperature | 80 °c |
