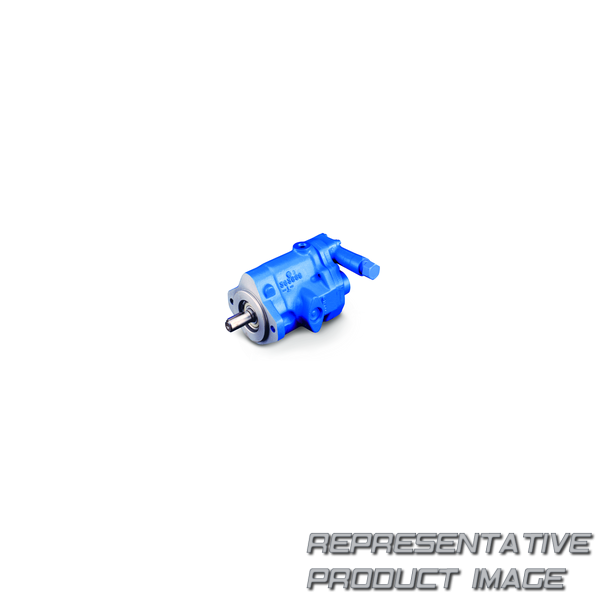

| pumps | pvq32-b2r-se1s-21-c14v11 pd-13 | ||
| Volumen de absorción | 32 : 32.9 cc/rev (2.01 cir), 140 bar (2000 psi) | ||
| input shaft rotation | r : right-hand rotation (cw) | ||
| ports - type and location | -se : standard - inch o-ring boss, 1.625" inlet and outlet, end port | ||
| Juntas | s : buna n, standard | ||
| control options | d : maximum displacement adjustable stop (optional) | ||
| special features | none |
| Serie | pvq : inline piston pump, variable volume, quiet series | ||
| Brida de fijación | -b2 : flange sae j744 101-2 (sae-b) | ||
| thru-drive without coupling | no thru-drive | ||
| shafts - input | 1 : straight keyed, sae "a" modified 0.75 x 1.75 lg | ||
| pump design number | -21 : 221 | ||
| control design | -13 : 13 | ||
| control type | -c14v11p |
