| Packaging | R | ||
| Recommended For | Medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN. | ||
| Standard Industry Specification | EN 853 1SN, ISO 1436 1SN R1, SAE 100R1 S | ||

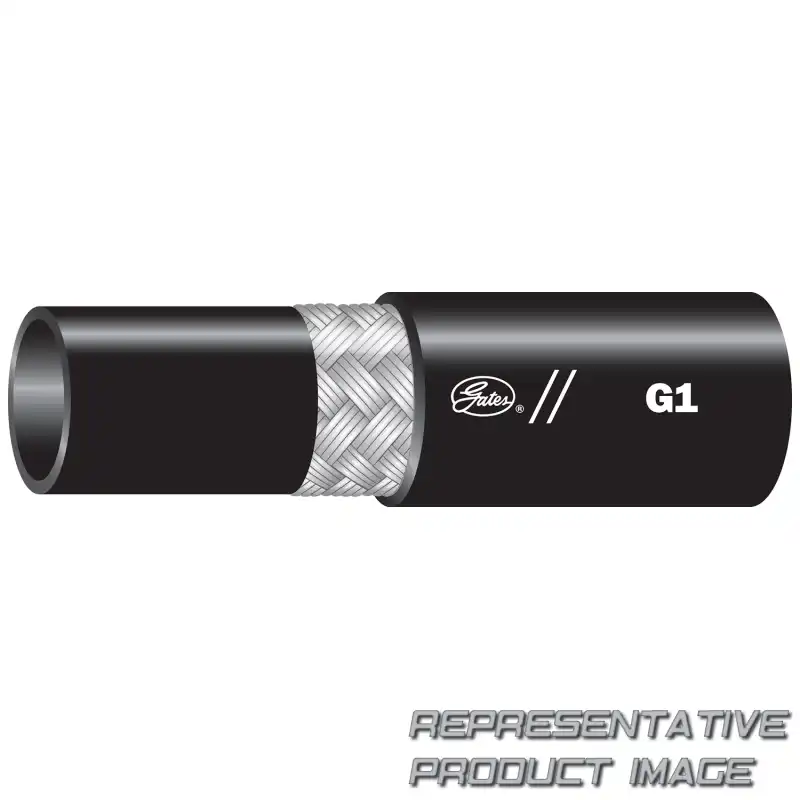

| Reinforcement | One braid of high-tensile steel wire. | ||
| Utilización | Wire Braid | ||
| Hose Outside Diameter (in) | 1,09 | ||
| Min. Burst Pressure (psi) | 6.100 | ||
| Continuous Operating Temperature Range | -40°F to +212°F | ||
| Product # | 46575706 |
| Weight (lbs.) | 0,43 | ||
| Notes | Meets Flame Resistance Acceptance Designation "MSHA 2G". | ||
| Tube | Black, oil-resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics. | ||
| Cover | Black, oil and abrasion resistant, synthetic rubber (Nitrile/PVC - Type C2). See Hose Stock Characteristics. | ||
| Temperature Range | -40°F to +212°F (-40°C to +100°C). For water emulsions see Temperature Limits Table. | ||
| Hose Inside Diameter (in) | 0,75 | ||
| Minimum Bend Radius (in) | 9 | ||
| UPC | 072053649406 | ||
| Part # | 12G1XBALE / 12G1XBALE |
